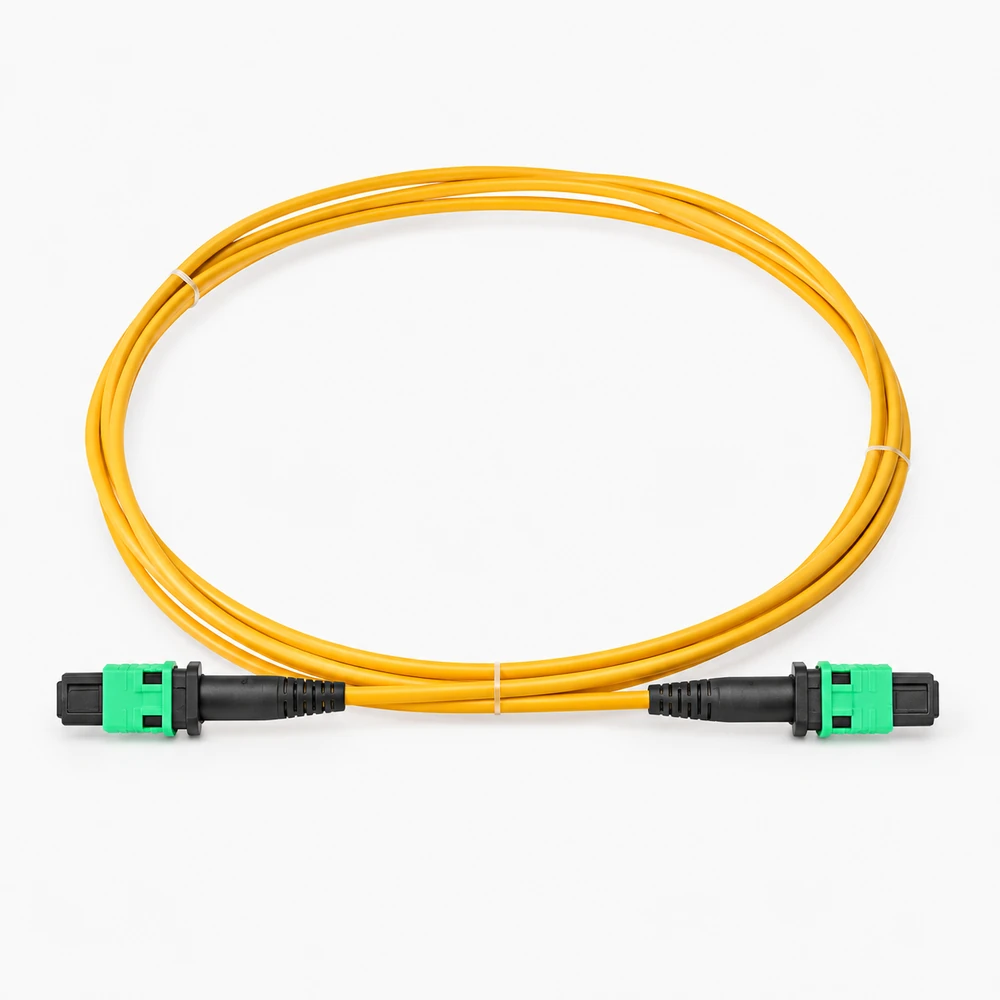

Describe the complete multi-fiber path
MPO/MTP trunk procurement depends on the connector at each end, gender, keying, polarity method, fiber type and count, construction, and the equipment or panel arrangement.
Configuration checklist
| Dimension | What to specify |
|---|---|
| Interfaces | Connector type, gender, keying, and both endpoints |
| Optical path | Fiber type, fiber count, polarity method, and loss requirement if applicable |
| Assembly | Length, jacket, pulling eye, labeling, and packaging |
| Deployment | Panel, cassette, transceiver, or direct equipment context |
Avoid a polarity assumption
A connector label or fiber count alone does not define end-to-end polarity. Preserve the link design, approved drawing, or complete reference when replacement fit matters.
Technical parameters and selection boundaries
Published configurations differ by manufacturer and exact part number. These are selection dimensions, not one combined specification.

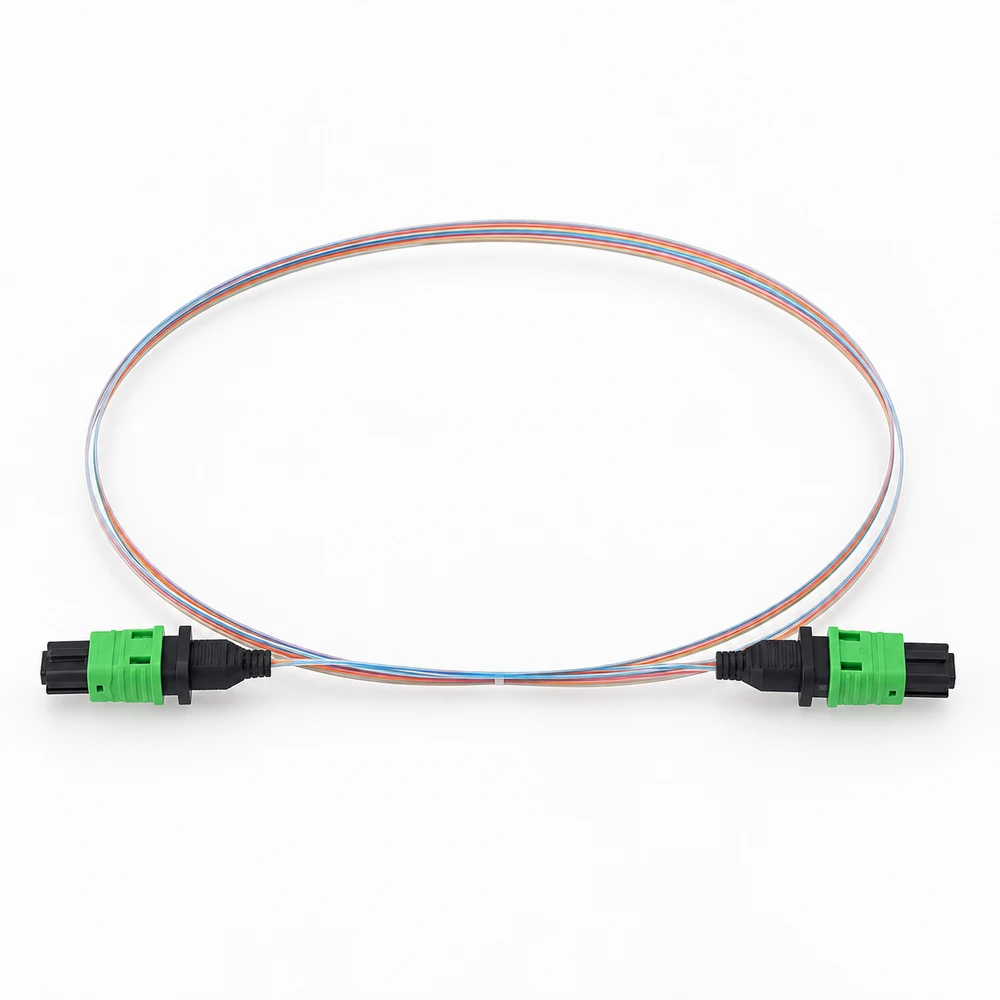

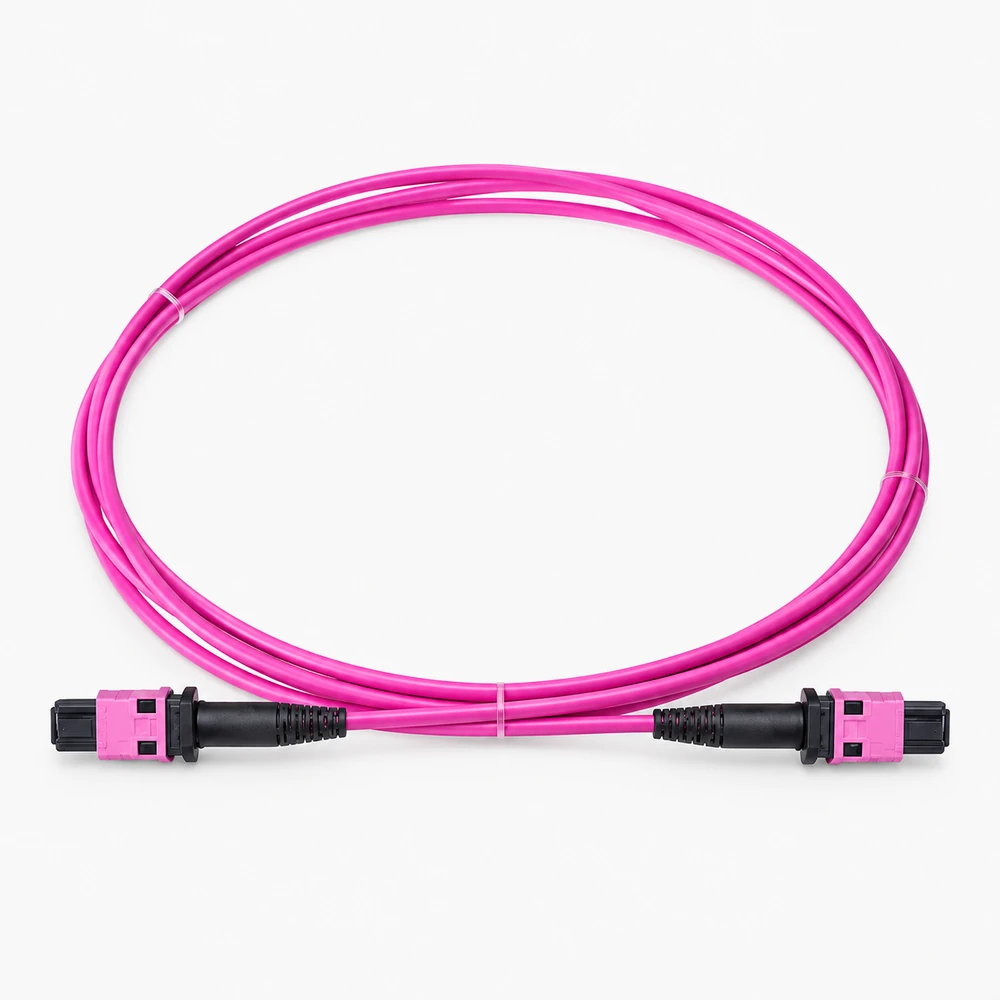

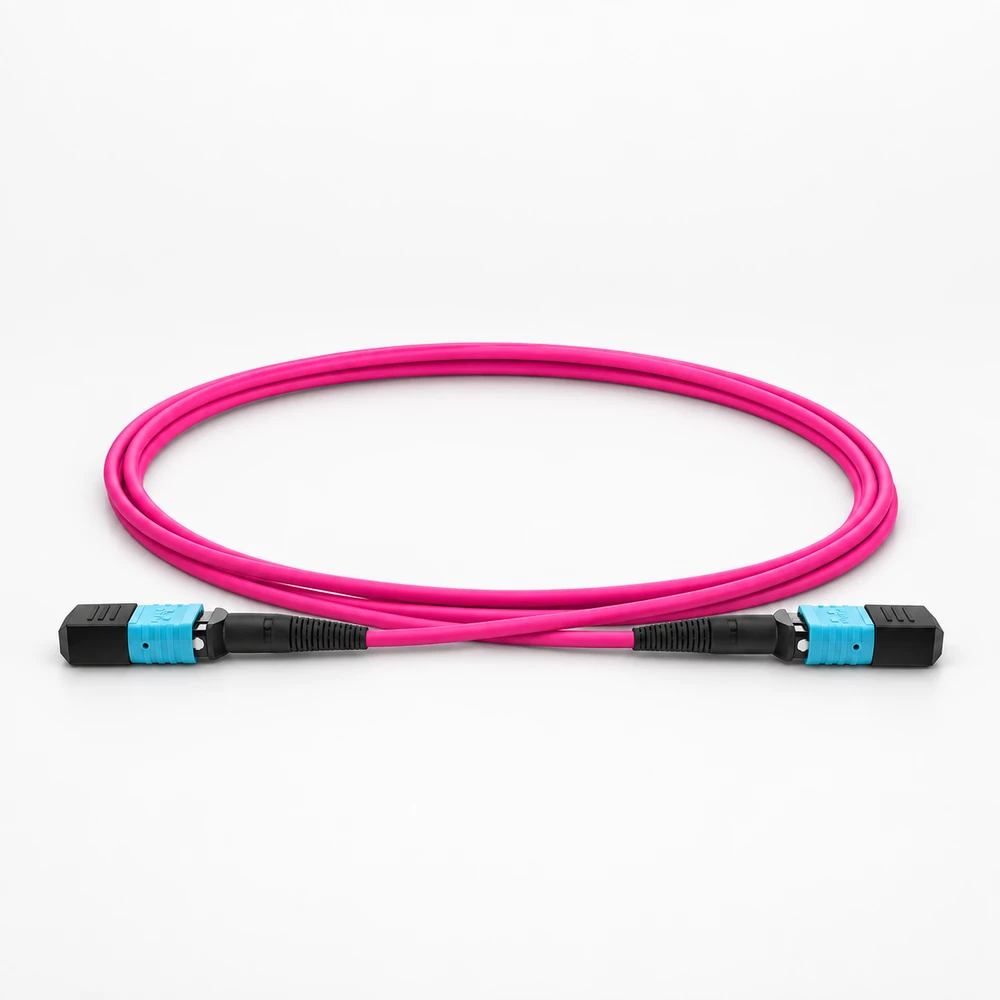

| Parameter | Documented example or choice | Verify for this request |
|---|---|---|
| Fiber count and media | Manufacturer ranges include 12–144 fibers and SM G652D/G657A1/G657A2 or MM OM3/OM4. The Corning example below is an 8-fiber OM4 assembly. | These are separate constructions. Specify total fibers, connector fiber layout and active lanes; never substitute by jacket color alone. |
| Polarity | GIGALIGHT lists A, B, C and R options. Corning GE5E508QADDDU100F specifies Universal TIA-568 Type-B. | Provide an end-to-end transmit/receive map including cassettes and patch leads. Confirm the vendor meaning of each ordering option. |
| Pin gender and polish | Published choices include pinned, unpinned or mixed ends, with APC or PC polish. The Corning example has pinned MTP ends. | List each end separately. Do not infer pins or polish from a capped connector photo. |
| Jacket and installation environment | The named Corning assembly is indoor OM4 with an OFNP plenum designation. GIGALIGHT lists OFNR, LSZH and OFNP ordering choices. | Select according to the installation rules and actual assembly documentation. LSZH material and fire classification are different questions. |
| Loss budget example | The Corning datasheet lists maximum insertion loss of 0.25 dB for connector A and 0.25 dB for connector B. | These are per-connector entries, not a complete channel-loss allowance. Include fiber length, all connections and acceptance testing. |
| Armored cable dimensions and bend limits | GE5E508QADDDU100F: 11.3 mm nominal outside diameter; minimum bend radius 169.5 mm during installation and 56.5 mm in operation. | Values apply to this armored configuration only. Installation and operating bend limits are not interchangeable. |
| Temperature conditions | Named Corning assembly: installation 0–50 °C; operation −10–60 °C. | Do not use the operating range as permission to install outside the installation range. |
Standard configurations and project options
| Configuration area | Documented option | Project decision |
|---|---|---|
| Length, breakout legs and routing | A configurable trunk range publishes 0.5 m or 1 m furcation legs and length ordering options. | Supply route length, slack, branch length and cabinet entry position; manufacturer confirmation determines the build. |
| Loss grade | Standard and Elite / low-loss constructions are published choices. | Request the selected assembly loss specification and test report; a range name does not prove every unit meets a project limit. |
| Pulling and packaging | Reel and pulling-eye configurations are offered for installation handling. | State the pulling route, access restrictions and handling method. Do not assume every connector can withstand the same pull force. |
Representative models and configurations
Examples illustrate real product variation. A listed manufacturer or model is not a statement of our stock, authorization, or confirmed availability.
| Manufacturer / series | Published configuration | Important scope |
|---|---|---|
| Corning GE5E508QADDDU100F | EDGE8 armored trunk; 8 fibers; OM4; pinned MTP-to-MTP; Type-B; 100 ft; documented 33-inch legs. | Exact ordering example from the retained official datasheet. The page hero is a different representative trunk, not a photograph of this Corning part. |
Applications and procurement context
- Use preterminated trunks for planned backbone routes after confirming the full connection map, loss budget, jacket requirements and installation access.
Compatibility, current supply, lead time, origin, and acceptance documents must be confirmed for the actual order.
